30W 60W 90W All in One Solar LED Street Light with LiFePo4 battery

Item Name: 30W, 60W, 90W all in one solar LED street light

Model No.: YF-SSL0215 Series

Luminaire efficiency: >170lm/w

Solar panel: Mono-crystalline, 6V or 18V optional

Battery: New LiFePo4

LED chips: Bridgelux/Lumileds 3030/5050/2835

IP rating: IP65 water proof

Color Temperature: 3000-6500K optional

Beam Agle: 70*145 degree, bat wing type

Color Rending Index: Ra>80

IP rating: IP65

Lifespan: over 50,000hours

Warranty: 3 Years

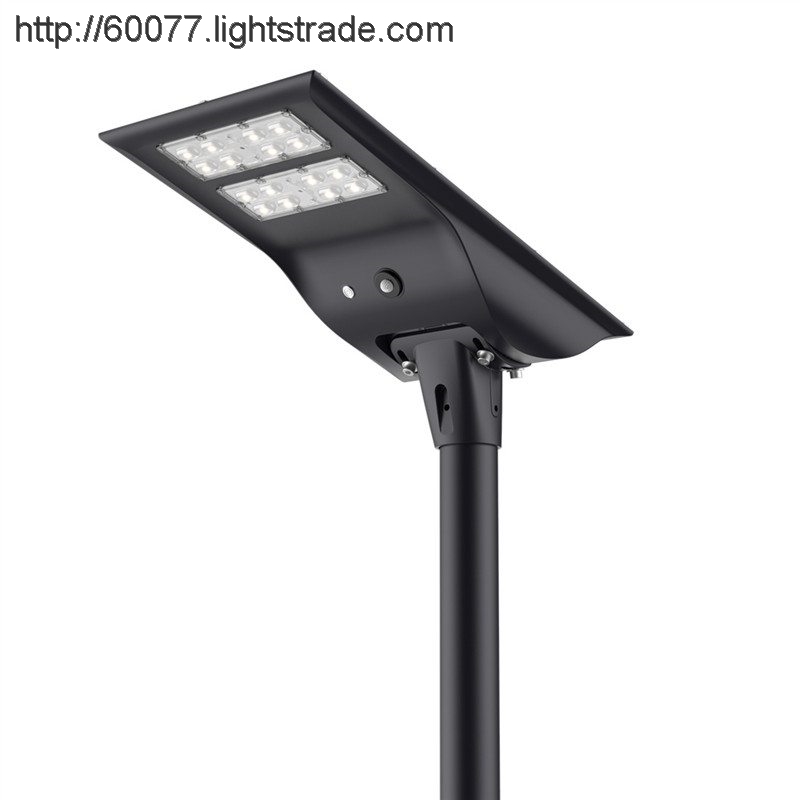

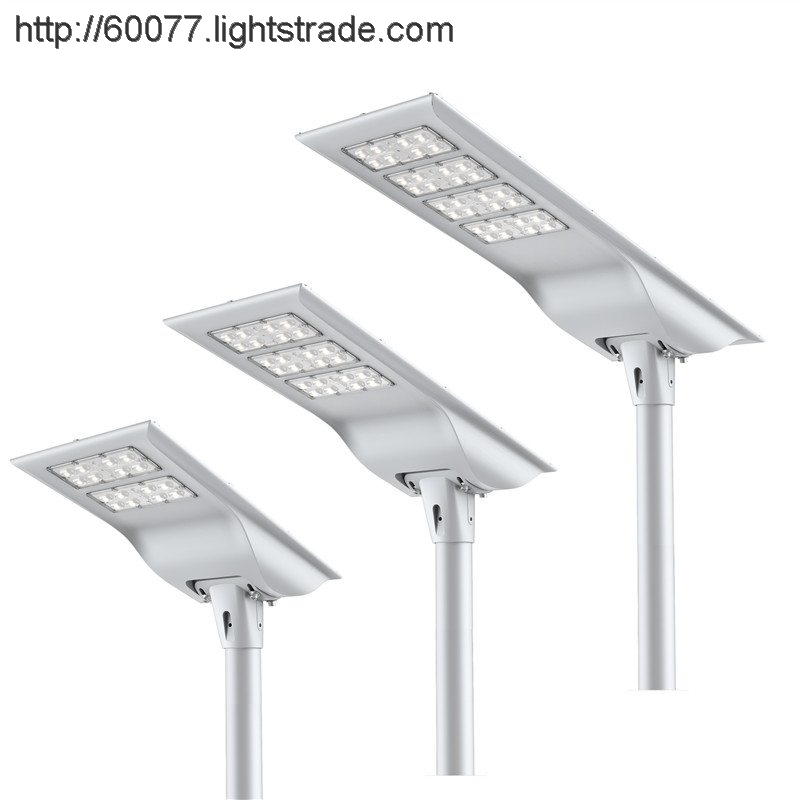

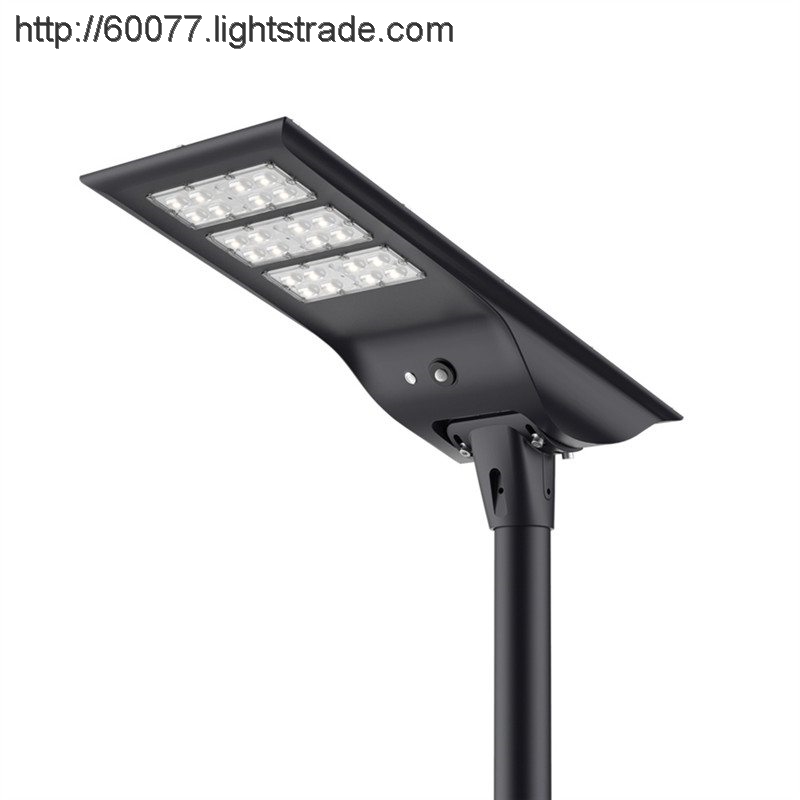

30W 60W 90W all in one solar LED street ligh

YAOFU SSL0215 series all in one solar LED street light integrated high lumen LED chips from Bridgelux/Lumileds, LM-80 listed, 180-210lm/w light source, mono-crystalline solar panel and convert efficiency over 22.3%, built-in large capacity LiFePo4 battery, PWM controller with PIR or Microwave sensor, this solar LED street light all in one can completely replace AC LED street light to save city power.

The key features for 30/60/90W all in one solar LED street light

1. The whole lamp body is made from die-casting aluminum alloy, strong heavy body, never rust;

2. The spigot can be adjusted 0-90 degree, head to the right angle to maximumly receive sun-power;

3. Brand new A1 class LiFePo4 battery, not recycled type, over 2000 cycles, lifespan over 6 years;

4. Second design optical lens, bat wing light distribution, Type II and Type III optional;

5. 180-210lm/w Philips Lumileds/Bridgelux 2835/3030/5050 chips optional, LM-80 listed, annual light decline <2%, long lifespan. with high lumen output, over 160-170lm/w for finished solar street light;

6. Solar panel can be opened freely, not glue type, in case to change battery and controller in the future;

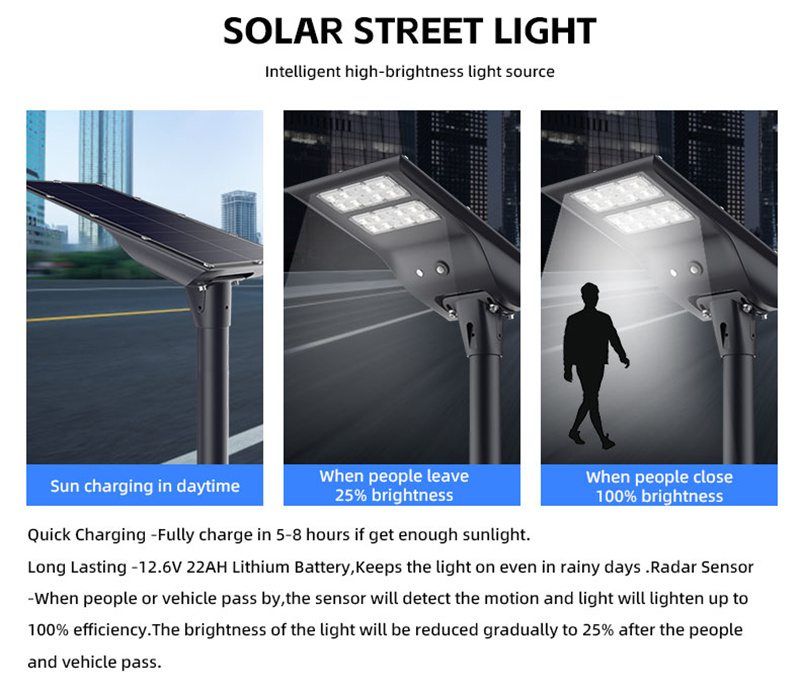

7. Three types of working optional: Microwave sensor, PIR sensor, dimming; all in one solar street light always has sensor to save battery to enlong lighting time. When sensor activated, will turn to 100% brightness working, and turn back to 30% running in regular condition.

Specification for 3.2V LiFePo4 battery with 6V Mono-crystalline solar panel

Specification for 12.8V LiFePo4 battery with 18V Mono-crystalline solar panel

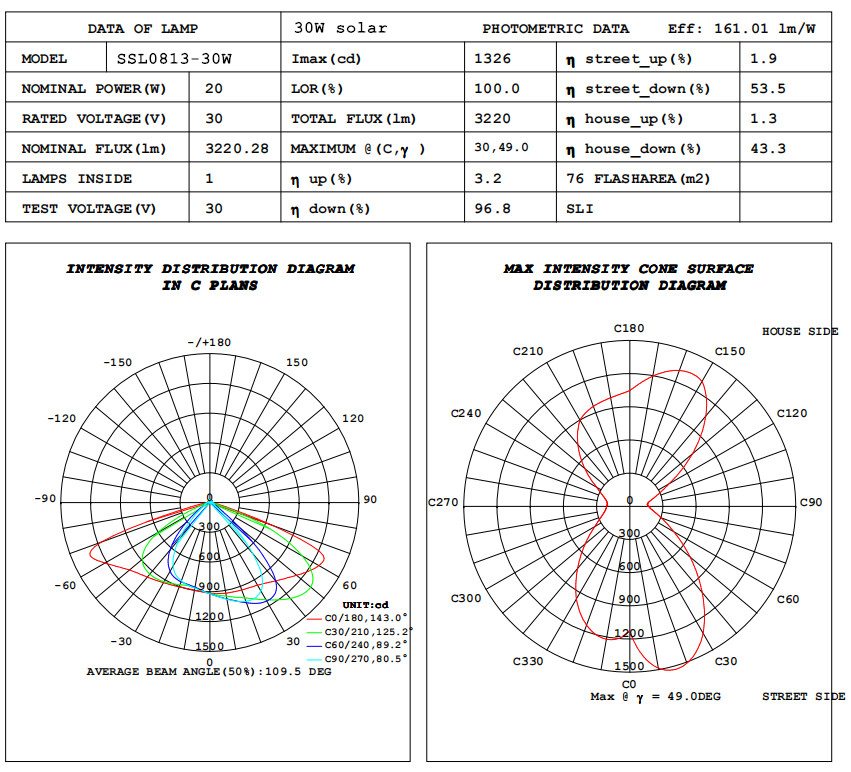

IES Test Report for 30W All in One Solar LED Street Light SSL-0813
