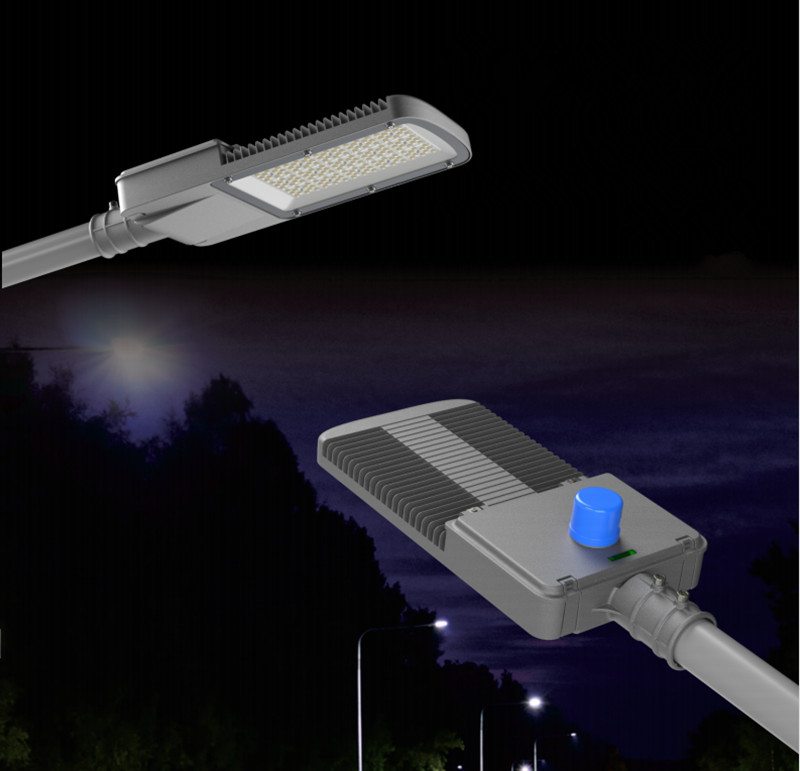

linhu@yaof-lighting.com Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light
Model No.: YF-SL0110 series
Luminaire efficiency: >150lm/w
LED Driver: Meanwell/Moso/Philips
LED chips: Philips/Bridgelux 3030
Input voltage: 90-305VAC 50/60HZ
Power Factor: >0.95 THD: <10%
IP rating: IP65 water proof
Color Temperature: 2700-6500K optional
Color Rending Index: Ra>80
IP rating: water proof IP65
Certifications: CE, RoHs, CB, SAA, TUV
Warranty: 5 Years
Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light
Product Features for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light
1. Heavy die-casting aluminum alloy, excellent heat dissipation.
2. Can be equipped with Photocell sensor, dusk to dawn automatically on/off.
3. Buckle design for driver box, tool free driver replacement.
4. Equipped with auto-power off switch, power cut off automatically when driver box opened.
5. Super brightness, over 130lm/w, 150lm/w for finished product.
6. Top quality with Meanwell/Philips/Moso driver, Philips chips, lifespan over 50,000, 5 years warranty.
Specification for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light
| Item Name | 100W, 150W, 200W,250W LED street Lights | |||
| Model No. | YF-SL0110-100W | YS-SL0110-150W | YF-SL0110-200W | YF-SL0110-250W |
| Power | 100W | 150W | 200W | 250W |
| Product Size(mm) | 530*265*80 | 635*265*80 | 685*265*80 | 735*265*80 |
| Beam Angle | 120° | |||
| Input Voltage | AC85-305V 50/60HZ | |||
| Power Factor | >0.95 | |||
| THD | <15% | |||
| Lightning Protection | 4KV or 10KV optional | |||
| CCT | 2700-6500K | |||
| CRI | >80 | |||
| Luminare Efficiency | >150lm/w | |||
| IP Rating | IP65 outdoor | |||
| LED Driver | Isolate high PF power | |||
| LED Chips | SMD 3030 | |||
| Working Temperature(℃) | -40-50 | |||
| Lifespan | >50,000 hours | |||
| Warranty | 5 Years | |||

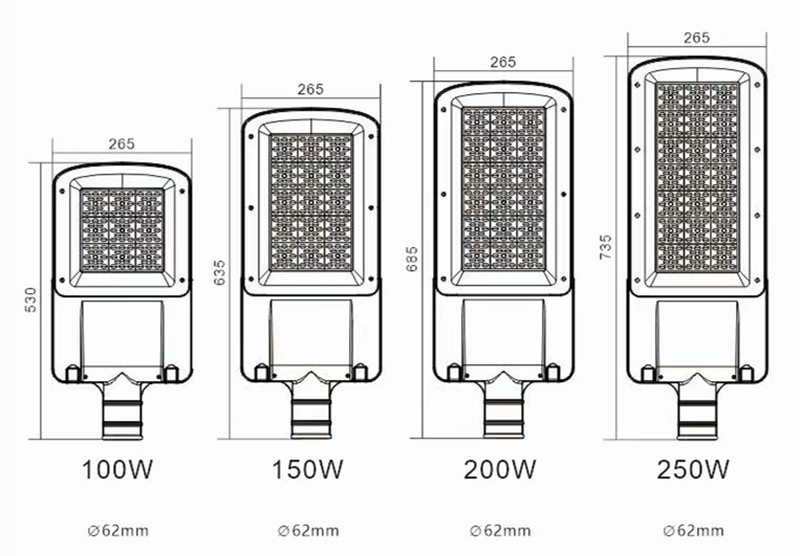

Product Size for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light

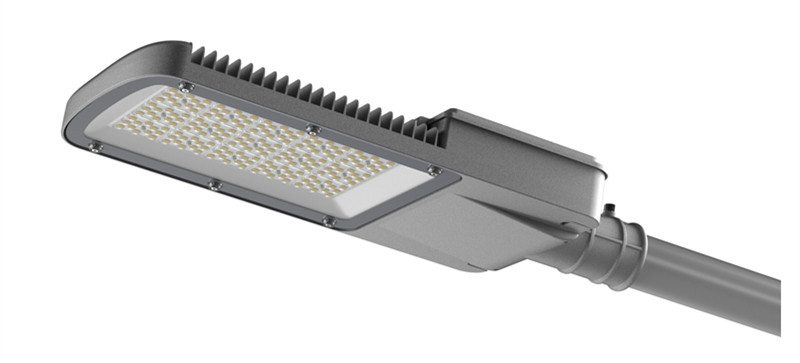

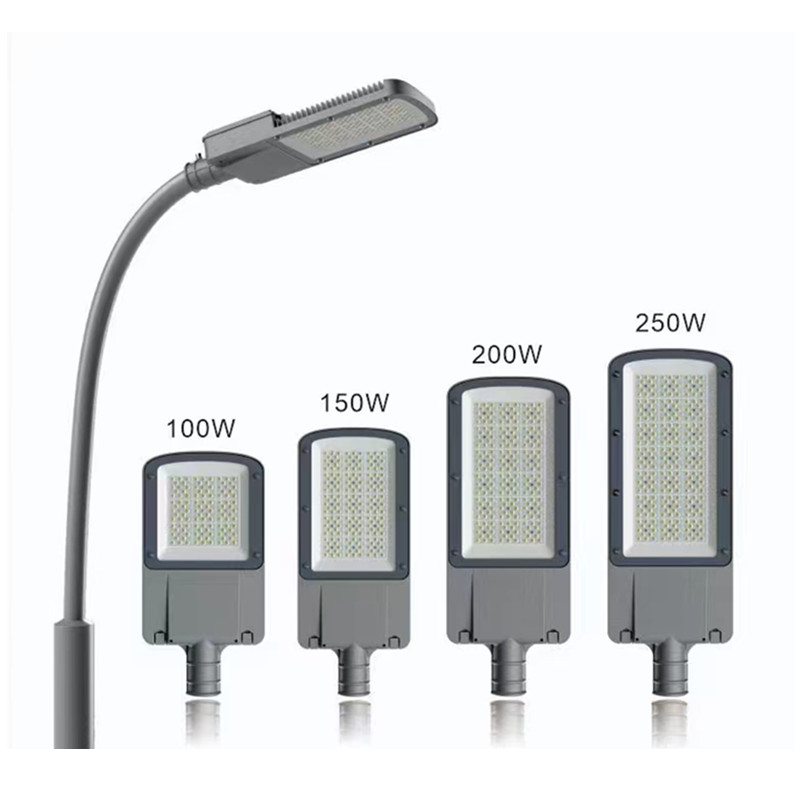

Product Photos for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light

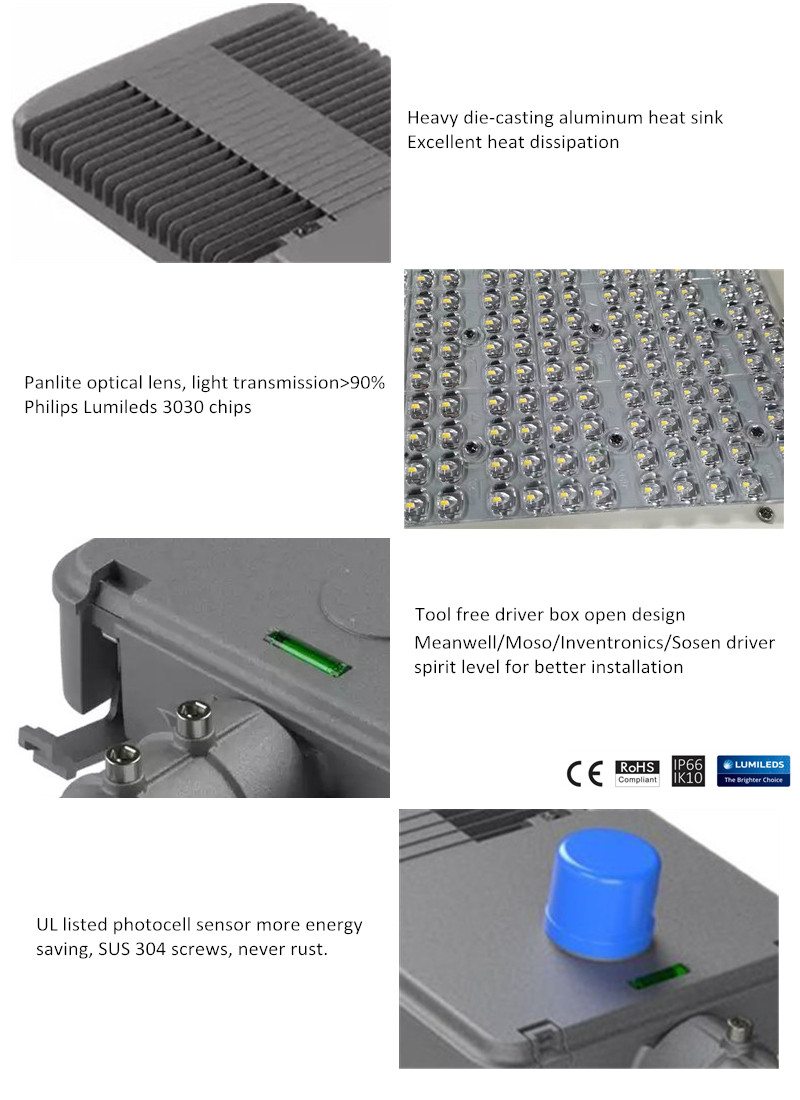

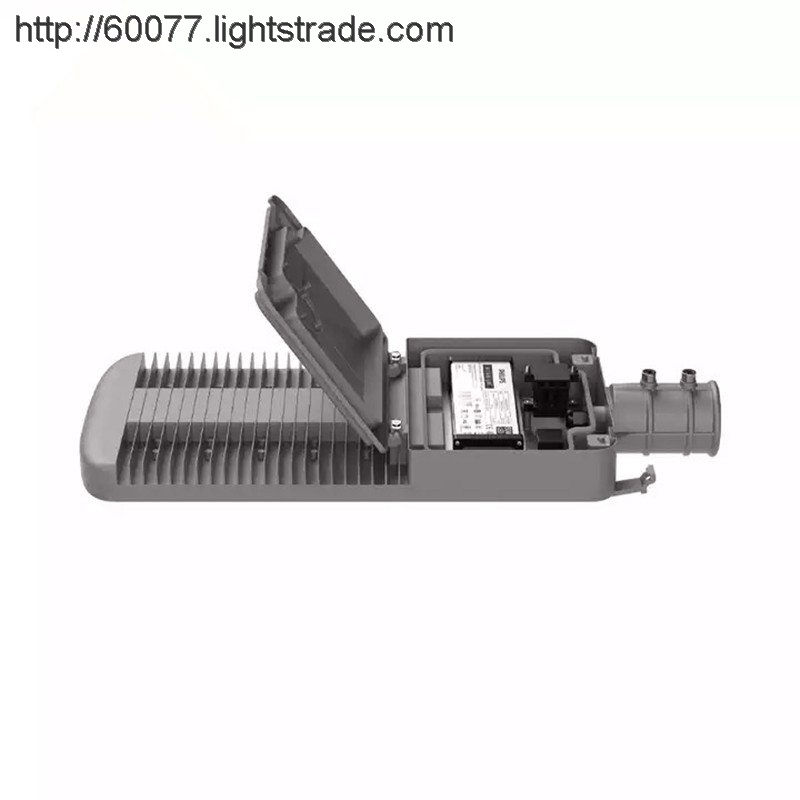

Meanwell, Philips, Moso, Inventronics driver optional, driver box can be opened without tools, for more quick maintenance like driver replacement.

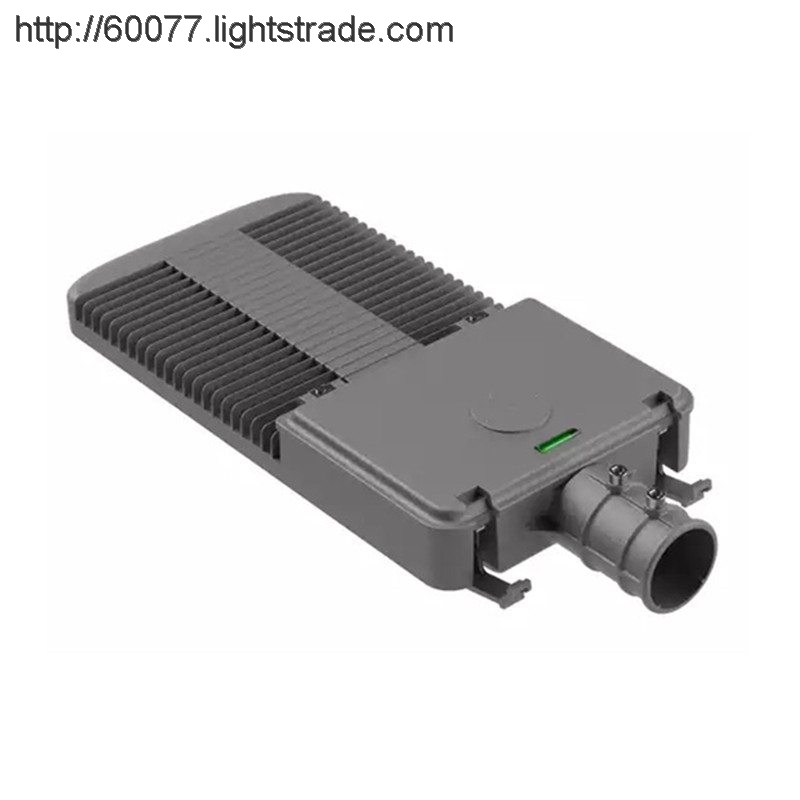

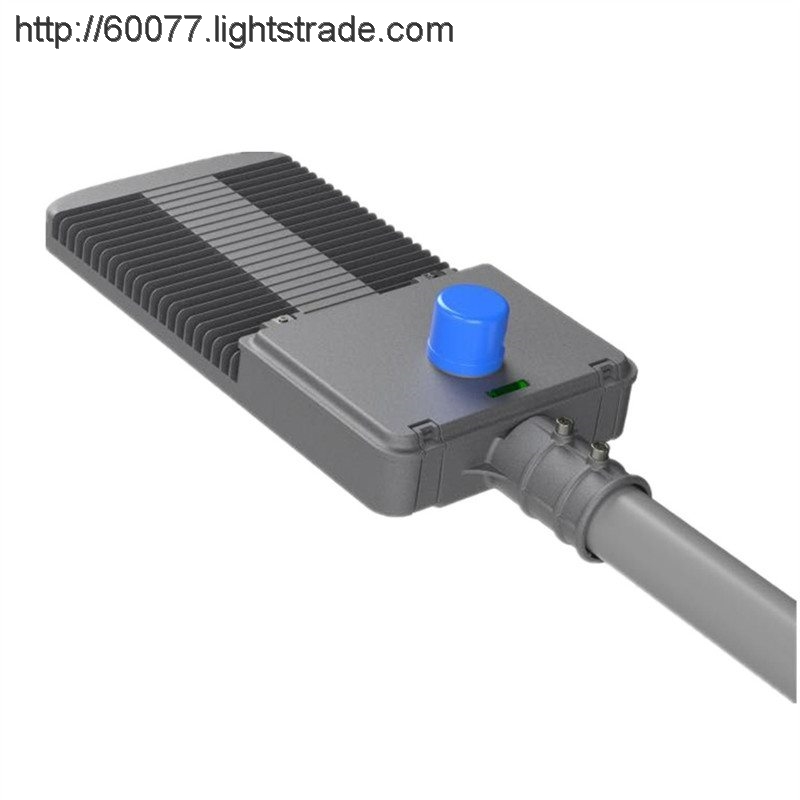

Can be equipped with UL listed photocell sensor, dusk to dawn turn on and off automatically.
Can be equipped with UL listed photocell sensor, dusk to dawn turn on and off automatically.

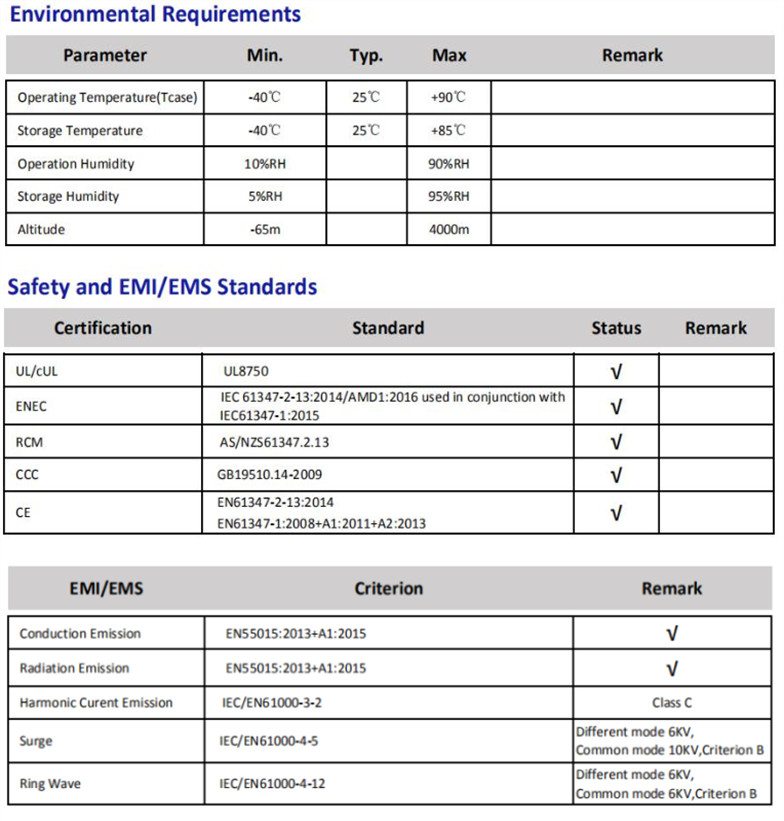

Safety Standard for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light.

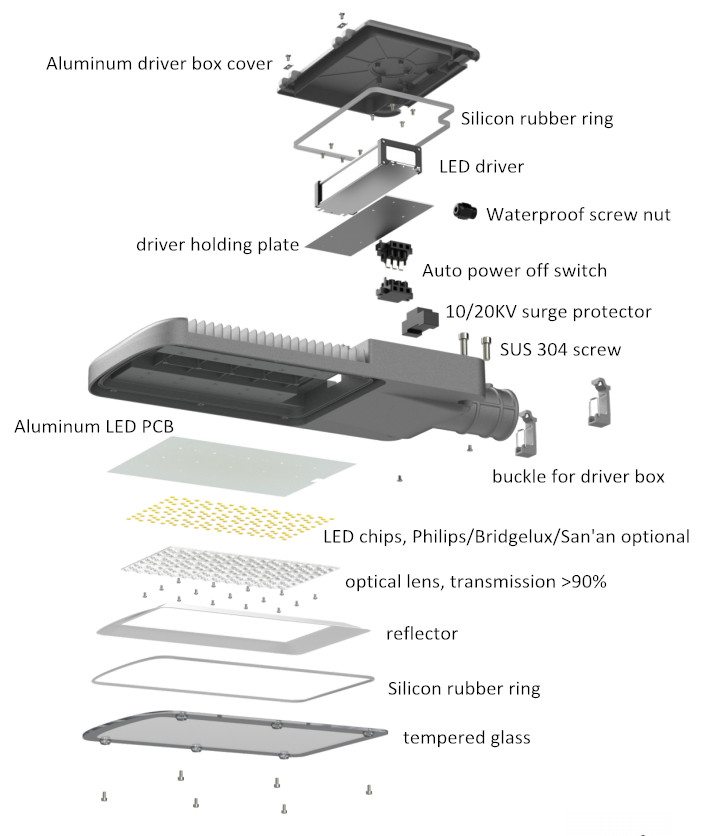

Key features for Factory Direct China Supplier Aluminum 100W 150W 200W 250W LED Street Light.
